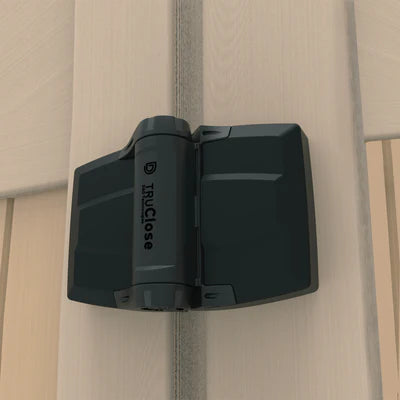

TruClose® MULTI-ADJUST™ Heavy Duty Series 3 for Wood

TCHDMA2S3BT
Highly Adjustable Gate Hinges for Wood or composite Gates

• 3-way adjustment – horizontal, vertical and tension
• Solves gate sag for good!
• Self-closes dry, wood or composite gates up to 154 lb (70kg)

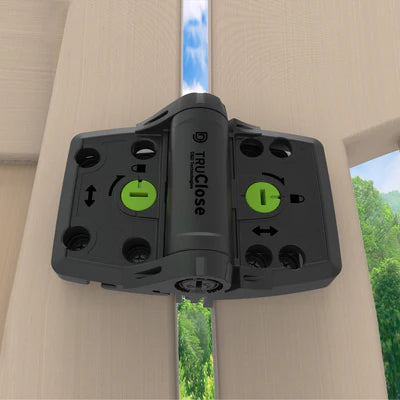

• Quick and simple horizontal and vertical adjustment dials
• Easy tension adjustment from both ends of the hinge

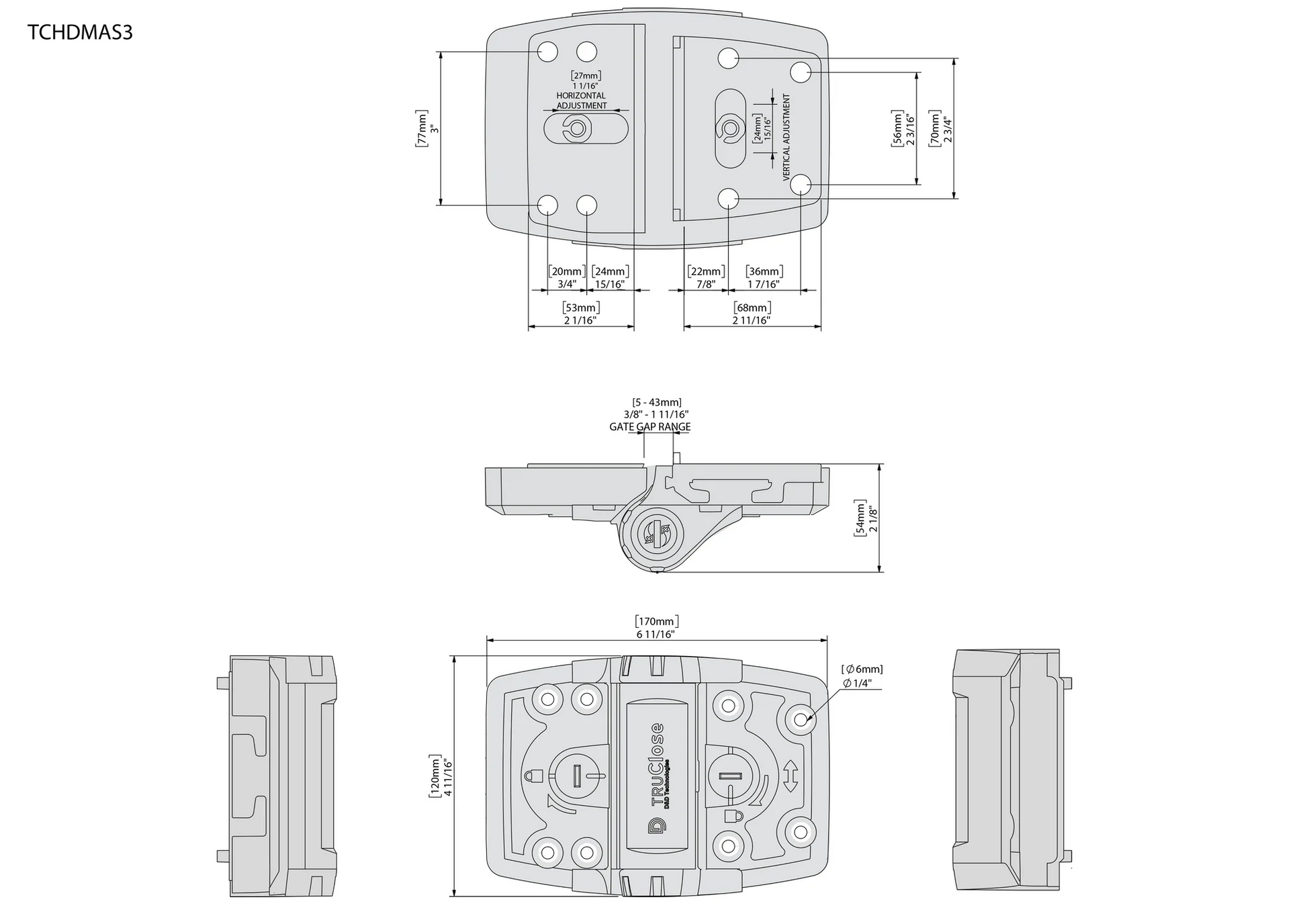

• Gate gap variance range of 3/16” to 1 11/16” (5-43mm)
• Vertical adjustment range up to 15/16” (24mm)
• UV stabilized, super-strong engineered polymer
• Internal stainless steel spring

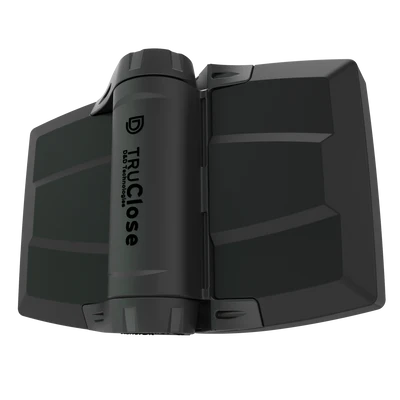

• Removable hinge covers and fasteners included
• Reversible mounting (right or left handed gate installation)

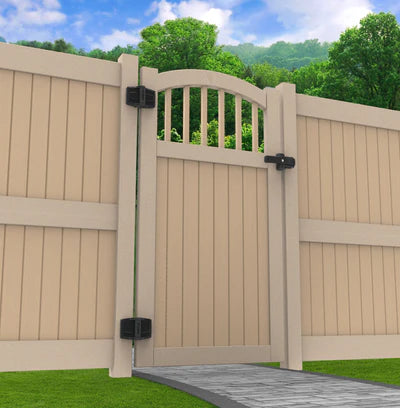

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Gate Type: Self-Closing

Gate Material: Vinyl/PVC, CompositeSelf-Closing Gate

Weight: Up to 154 lb (70kg)

Approx Gate Size: 4ft W x 6ft H (1.8m x 1.2m)

Gate Frame/Post Shape: Square-to-Square

Min Post Size: 3"+ (75mm)

Ideal Gate Gap: 5/8 -1 11/16" (16-43mm)

Fixing Method: Screw-On

Color/Finish: Black
