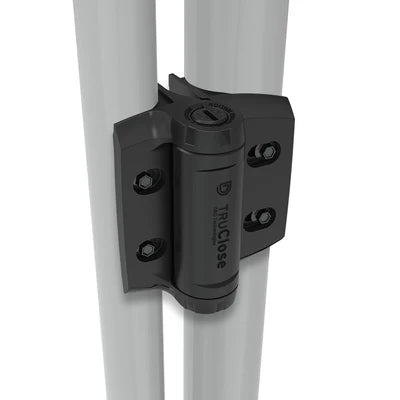

TruClose® ROUND Heavy Duty Hinges

TCHDRND1S3

Self-Closing Hinges for Round Posts

NEW: Easier tension adjustment from both ends
NEW: 20% stronger– self-close gates up to 154lb (70kg)
NEW: Updated,stylish Series 3 body design

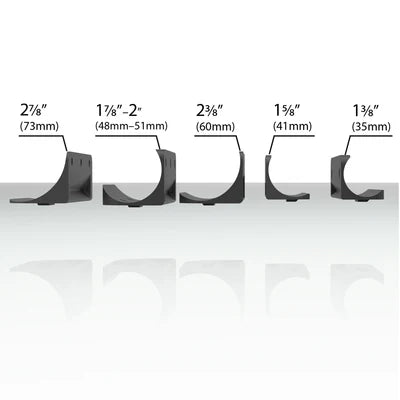

• Includes adaptors to fit most post and gate diameters
• Right- or left-handed gate-swing installation
• Side-fixing legs for fast alignment and extra fixing strength
• Industrial-strength polymer will not rust, bind, sag or stain
• Internal stainless steel springs and components
• All fasteners included

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Gate Type: Self-Closing

Gate Material: Chain Link

Self-Closing Gate Weight: Up to 154lb (70kg)

Approx Gate Size: 4ft W x 6ft H (1.2m x 1.8m)

Gate Frame/Post Shape: Round-to-Round

Min Post Size: Round

Ideal Gate Gap: 1" (25mm)

Fixing Method: Screw-On

Color/Finish: Black

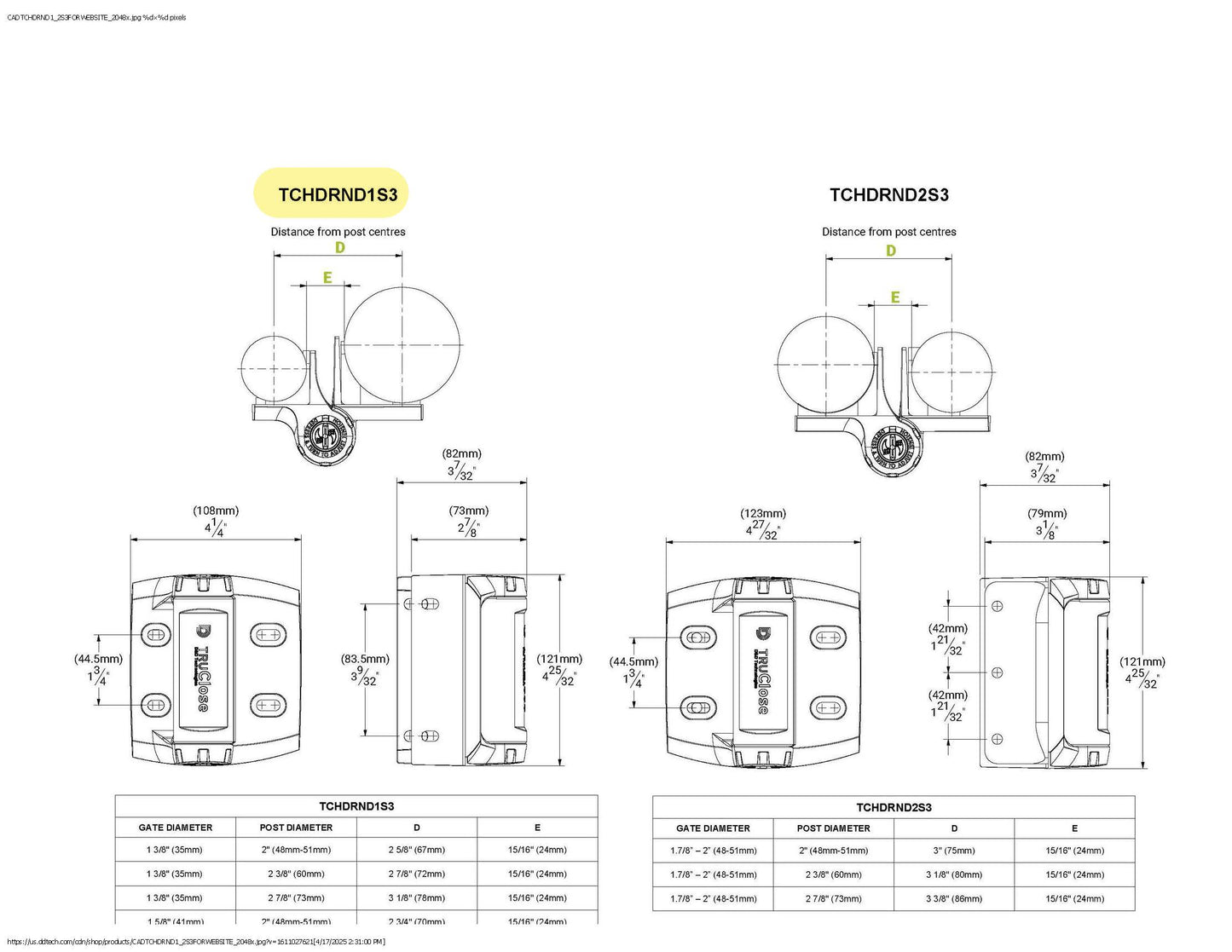

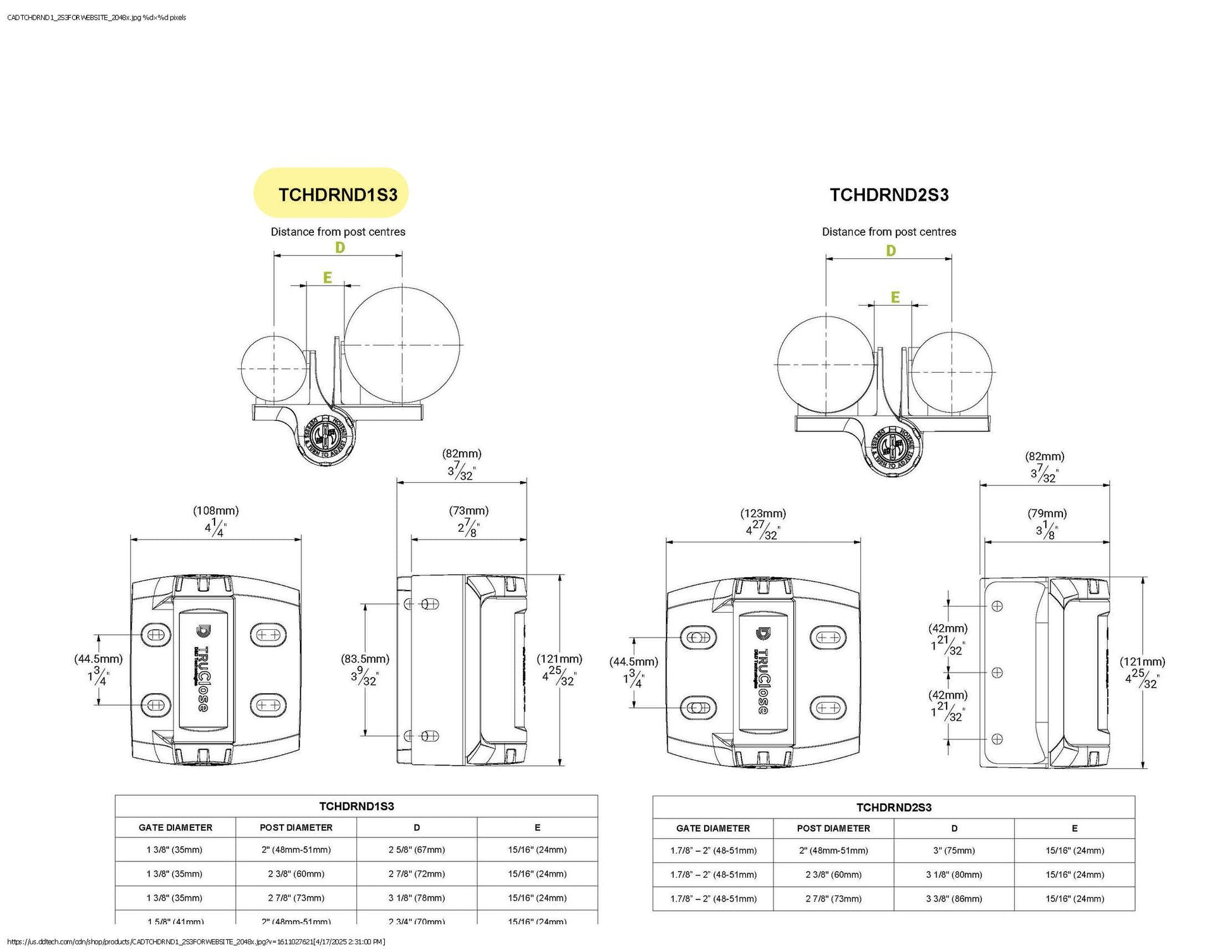

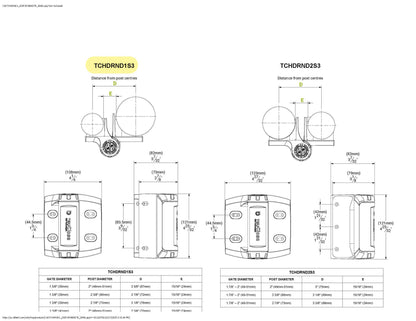

Round Post Diameter TCHDRND1: Gate frame: 1⅜” & 1⅝”, Post: 1⅞”-2”, 2⅜” & 2⅞”
