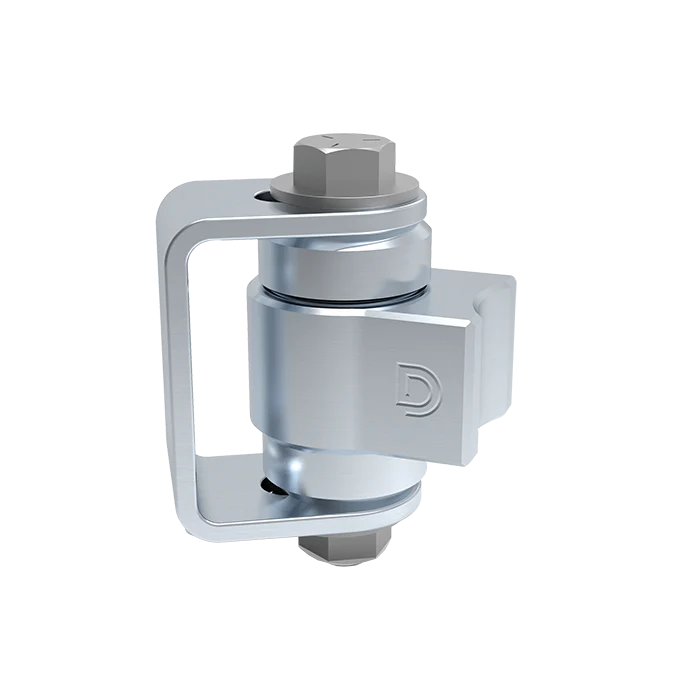

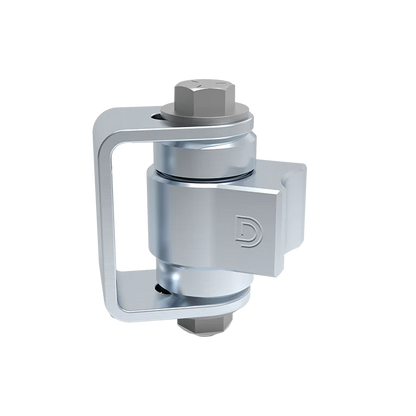

Original BadAss Gate Hinges

CI3000

High-temperature sealed bearings – safe to powder coat with hinges installed on gate

No greasing, no maintenance. EVER!

Horizontal adjustability for perfect installations

Load rating per gate: 2,000 lb (900kg)

Maximum gate weight: 1,100 lb (500kg)

Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Gate Type: Non Self-Closing Gate

Material: Aluminum, Steel/Ornamental Iron

Approximate Gate Size: 7ft W x 10ft H (2m x 3m)

Gate Frame/Post Shape: Square-to-Square, Square-to-Round

Min Post Size: 1½"+ (38mm)

Ideal Gate Gap: 2½ - 3" (61-74mm)

Fixing Method: Weld-On
